| Products Overview |

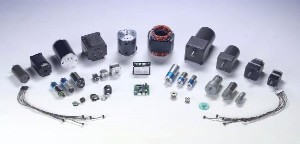

| Our products include Brushless DC Motor and Brushless Motor Driver, ranging from low voltage (6V) to high voltage (390V), hundreds rpm to sixty thousands rpm, several watts to thousands watts, sensor or sensorless, high power density and high efficiency. Many types of our products are custom-made. |
 |
|
| Low Voltage High Speed BLDC Motor |
Brushless Motor |
Voltage |
Watt |
RPM |
Sensor/Sensorless |
20 Series |
6-36 |
10-80 |
20k-60k |
SL |
28 Series |
6-36 |
20-100 |
10k-50k |
SL |
36/37 Series |
12-48 |
60-500 |
6k-40k |
S/SL |
38 Series |
12-48 |
30-150 |
6k-40k |
S/SL |
40 Series |
12-48 |
30-150 |
6k-30k |
S/SL |
45 Series |
12-48 |
30-200 |
6k-30k |
S/SL |
| Low Voltage Low Speed BLDC Motor |
Brushless Motor |
Voltage |
Watt |
RPM |
Sensor/Sensorless |
38 Outer Rotor |
12 |
1.3 |
2130 |
S |
36/37 Series |
6-24 |
10-80 |
3k-6k |
S/SL |
38 Series |
12-24 |
10-80 |
4k-6k |
S/SL |
40 Series |
12-24 |
10-80 |
3k-6k |
S/SL |
80 Series |
12-48 |
50-150 |
800-5k |
S/SL |
90 Series |
12-48 |
50-200 |
700-4k |
S/SL |
| High Voltage High Speed BLDC Motor |
Brushless Motor |
Voltage |
Watt |
RPM |
Sensor/Sensorless |
82 Series
NEMA34 Series |
110/220
155/310 |
400-1000 |
5k-18k |
S/SL |
YS50 Series |
110/220 |
200-500 |
4k-8k |
S/SL |
| High Voltage Low Speed BLDC Motor |
Brushless Motor |
Voltage |
Watt |
RPM |
Sensor/Sensorless |
82 Series
NEMA34 Series |
110/220
155/310 |
100-400 |
2k-5k |
S/SL |
90 Series |
110/220 |
100-300 |
700-4k |
S/SL |
YS50 Series |
110/220 |
100-300 |
800-4k |
S/SL |
YS56 Series |
110/220 |
200-500 |
700-4k |
S/SL |
YS63 Series |
110/220 |
400-1k |
700-4k |
S/SL |
YS71 Series |
110/220 |
800-2k |
700-4k |
S/SL |
| DC Brushless Motor Driver |
Brushless Driver |
Voltage |
Rated Amps |
Max RPM |
Sensor/Sensorless |
BLMD-4CTV39-B1P-TSM4 |
75-275VAC
75-390VDC |
5AAC
4ADC |
50k |
S |
BLMD-8CTV39-B1P-TSM4 |
75-275VAC
75-390VDC |
10AAC
8ADC |
50k |
S |
BLMD-8TC39-1P-SL23 |
75-275VAC
75-390VDC |
11AAC
8ADC |
40k |
SL |
BLMD-10CTV06-B1P-TSM4 |
11-60VDC |
10ADC |
50k |
S |
BLMC-L-SL-I |
9-59VDC |
10ADC |
60k |
SL |
|
|
|
